Multiples GE RJ45/ SFP28/ SFP+/ SFP/ QSFP+ Slots
IPS 22 Gbps
NGFW 17 Gbps
Threat Protection de 15 Gbps
The FortiGate 1800F Series enables organizations to build security-driven networks that can weave security deep into their datacenter and across their hybrid IT architecture to protect any edge at any scale.
Powered by a rich set of AI/ML-based FortiGuard Services and an integrated security fabric platform, the FortiGate 1800F Series delivers coordinated, automated, end-to-end threat protection across all use cases.
The industry’s first integrated Zero Trust Network Access (ZTNA) enforcement within an NGFW solution, FortiGate 1800F automatically controls, verifies, and facilitates user access to applications delivering consistent convergence with a seamless user experience.
QD7 is an authorized Fortinet dealer, contact us right now and request a quote from the best firewall on the market!
FortiOS enables the convergence of high-performance networking and security across the entire Fortinet security fabric. Because it can be deployed anywhere, it delivers consistent results and context-based security posture across network, endpoint and multi-cloud environments.
Interactive detail and topology visualizers that display status in real time;
Click fix that provides accurate and fast protection against threats and abuse;
Unique threat scoring system correlates weighted threats with users to prioritize investigations.

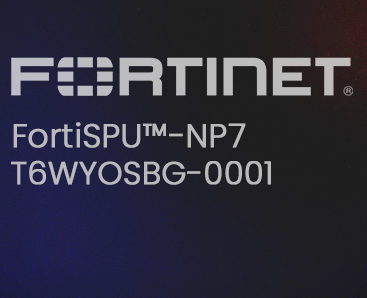

Traditional firewalls cannot protect against today's content- and connection-based threats because they rely on off-the-shelf hardware and general-purpose CPUs, causing a dangerous performance gap. Fortinet's customized SPU processors deliver the power you need - up to 520 Gbps - to detect emerging threats and block malicious content, while ensuring your network security solution does not become a performance bottleneck.
FortiManager, Fortinet's centralized management solution from Fortinet, allows integration management of the Fortinet security structure, including devices such as FortiGate, FortiSwitch, and FortiAP. It simplifies and automates the supervision of network and security functions in various environments, serving as the fundamental component for deploying Hybrid mesh firewalls.

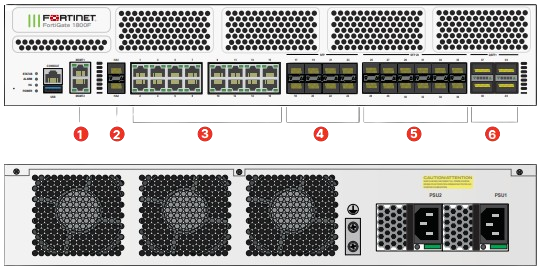

2 x GE RJ45 MGMT Ports
2 x 10 GE SFP+ / GE SFP HA Slots
16 x GE RJ45 Ports
8 x GE SFP Slots
12 x 25 SFP28 / 10 GE SFP+/ GE SFP Slots
4 x 100 GE QSFP28 /40 GE QSFP+ Slots*
| Hardware Accelerated GE RJ45 Ports | 16 |
| Hardware Accelerated GE SFP Slots | 8 |
| Hardware Accelerated 100 GE QSFP28 / 40 GE QSFP+ Slots | 4 |
| Hardware Accelerated 25 GE SFP28 / 10 GE SFP+ / GE SFP Slots | 12 |
| GE RJ45 Management Ports | 2 |
| 10 GE SFP+ / GE SFP HA Slots | 2 |
| USB 3.0 Port | 1 |
| Console RJ45 Port | 1 |
| Onboard Storage | 0 |
| Trusted Platform Module (TPM) | Yes |
| Included Transceivers | 2x SFP+ (SR 10 GE) |
| IPS Throughput 2 | 22 Gbps |
| NGFW Throughput2,4 | 17 Gbps |
| Threat Protection Throughput 2,5 | 15 Gbps |
| IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) | 198 / 197 / 140 Gbps |
| IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP) | 198 / 197 / 140 Gbps |
| Firewall Latency (64 byte, UDP) | 3.22 μs |
| Firewall Throughput (Packet per Second) | 210 Mpps |
| Concurrent Sessions (TCP) | 12 Million / 40 Million* |
| New Sessions/Second (TCP) | 750 000 / 2 Million* |
| Firewall Policies | 100 000 |
| IPsec VPN Throughput (512 byte) 1 | 55 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 20 000 |
| Client-to-Gateway IPsec VPN Tunnels | 100 000 |
| SSL-VPN Throughput | 11 Gbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 10 000 |
| SSL Inspection Throughput (IPS, avg HTTPS) 3 | 12 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) 3 | 9500 |
| SSL Inspection Concurrent Session (IPS, avg HTTPS)3 | 1.3 Million |
| Application Control Throughput (HTTP 64K) 3 | 34 Gbps |
| CAPWAP Throughput (HTTP 64K) | 65 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 250 |
| Maximum Number of FortiSwitches Supported | 196 |
| Maximum Number of FortiAPs (Total /Tunnel) | 4096 / 2048 |
| Maximum Number of FortiTokens | 20 000 |
| High Availability Configurations | Active-Active, Active-Passive, Clustering |
| Height x Width x Length (inches) | 3.5 x 17.25 x 21.1 |
| Height x Width x Length (mm) | 88.4 x 438 x 536 |
| Weight | 30.2 lbs (13.7 kg) |
| Form Factor (supports EIA/non-EIA standards) | Rack, 2RU |
| AC Power Supply | 100–240VAC, 50/60 Hz |
| AC Current (Maximum) | 7A@100VAC, 3A@240VAC |
| DC Power Supply | -48V to -60V DC |
| DC Current (Maximum) | 20A |
| Power Consumption (Average / Maximum) | 410.9 W / 459.1 W |
| Heat Dissipation | 1565.53 BTU/h |
| Power Efficiency Rating | 80Plus Compliant |
| Redundant Power Supplies Hot Swappable | Yes (Default dual AC PSU for 1+1 Redundancy) |
| Classificação de eficiência da F.A | Compatível com 80Plus |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -31°F to 158°F (-35°C to 70°C) |
| Humidity | 10% to 90% non-condensing |
| Noise Level | 62.74 dBA |
| Forced Airflow | Side and Front to Back |
| Operating Altitude | Up to 7400 ft (2250 m) |
| Compliance | FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB |
| Certifications | USGv6/IPv6 |
